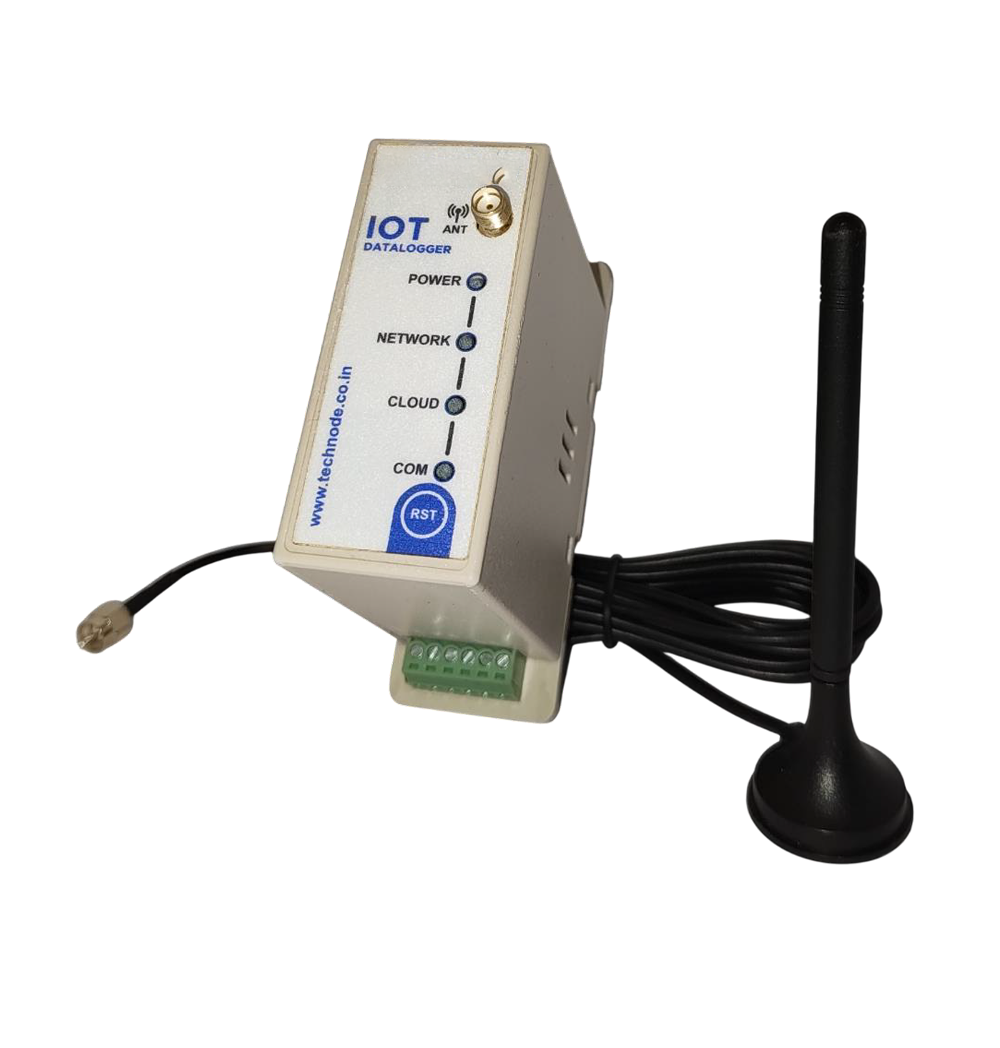

A rugged, cloud-ready 4G gateway engineered for reliable field connectivity, edge intelligence, and seamless integration across industrial and smart infrastructure deployments.
| Category | Specification |
|---|---|
| Cellular Network | 4G LTE (Single SIM) |
| Fallback Networks | 3G / 2G |
| Supported LTE Bands | B1, B3, B5, B8, B34, B38, B39, B40, B41 |
| Supported Protocols | MQTT, HTTP |
| GNSS | Optional |
| Receiver Sensitivity | 137 dBm @ 300 bps |
| Response Time | < 250 ms |
| Interface Ports | 1 × RS485 |
| Supported Interface Protocol | Macnman Beam Protocol |
| Local Logic Engine | Rule-based edge automation |
| Uplink Modes | Periodic, threshold-based, event-driven |
| Offline Data Buffer | Up to 30,000 records |
| Auto Data Sync | Uploads stored data when network resumes |
| Power Input | 12–24V DC |
| Typical Power Consumption | < 50 mA |
| Antenna Options | Internal & External |
| Operating Temperature | –30°C to +70°C |
| Humidity | 0–100% RH, non-condensing |
| Enclosure Material | Glass-filled Nylon |
| Color | Matte White |
| Dimensions | ~65 × 42 × 43 mm |
| Weight | ~240 g (with 19Ah battery) |
| Ingress Protection | IP35 (IP67 optional) |
| Certifications | RoHS, WPC (others available on request) |
