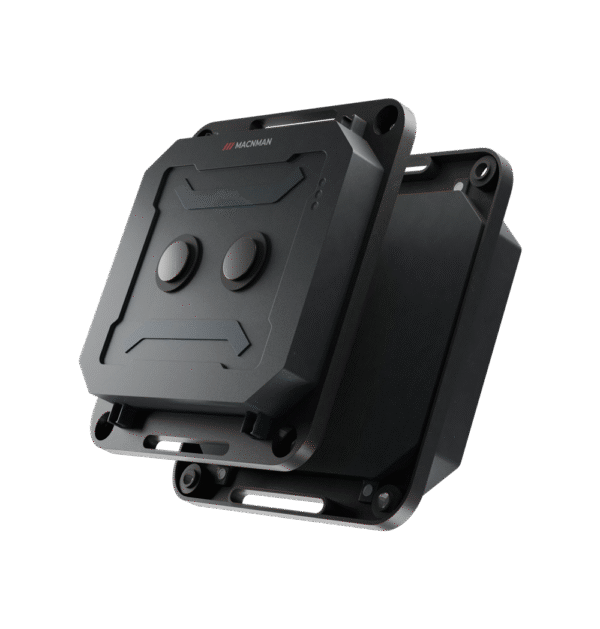

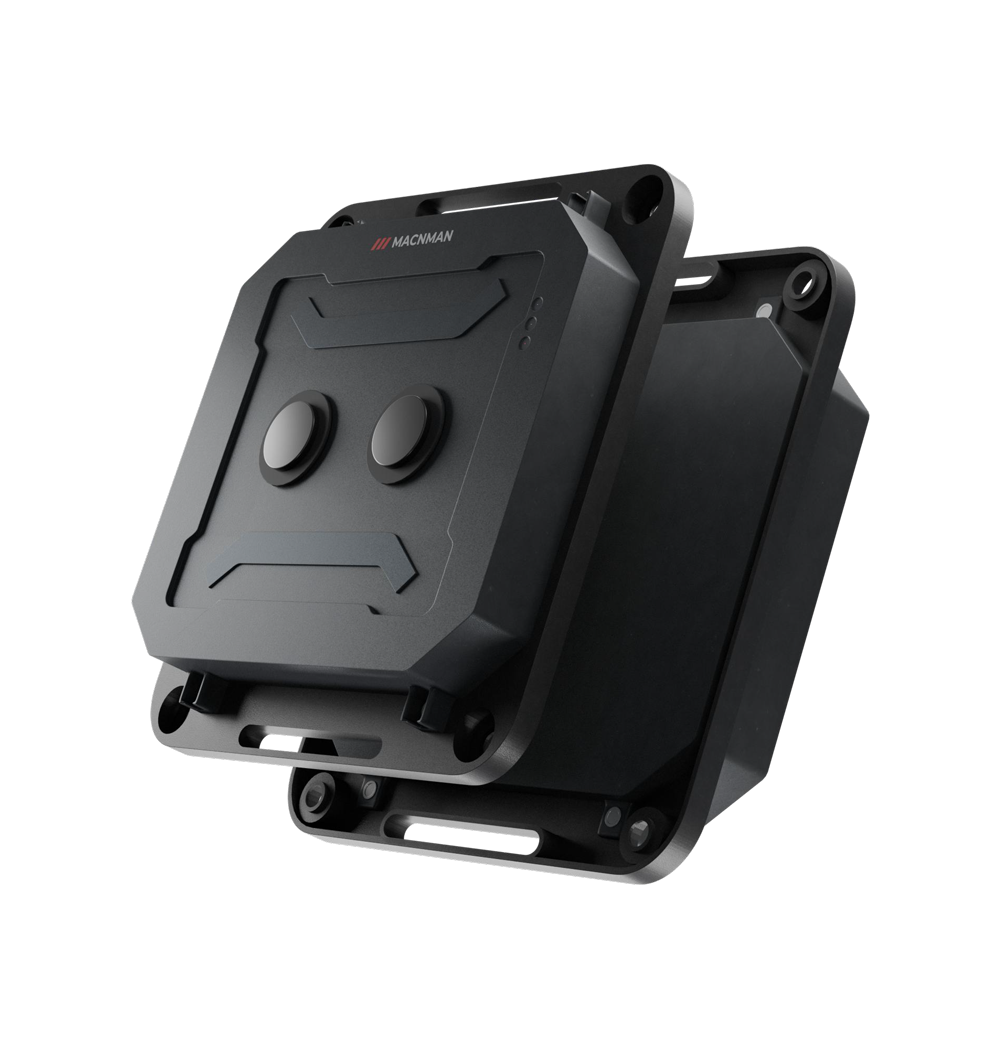

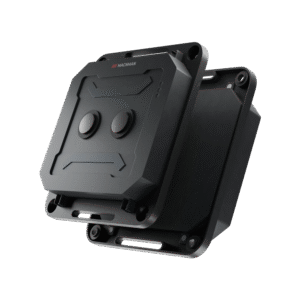

Compact LoRaWAN ToF distance sensor with millimeter precision, invisible IR beam, and rugged IP66/IP67 housing.
True distance measurement with millimeter-level precision
LoRaWAN® Class A & C communication
Supports periodic, threshold-based, and event-driven uplinks
Works reliably across different target sizes, colors, and reflectivity
Invisible 940 nm infrared beam (eye-safe)
Low power consumption with optimized battery operation
Secure onboarding with pre-flashed DevEUI / AppEUI / AppKey
Rugged IP66/IP67-rated enclosure for industrial/outdoor use
| Parameter | Value |
|---|---|
| Distance Range | 4 – 400 cm (Long) / 4 – 130 cm (Short) |
| Measurement Rate | Up to 60 Hz (adjustable) |
| Ambient Light Immunity | Up to 100k Lux |
| Wavelength | 940 nm (eye-safe & invisible) |
| Response Time | < 25 ms typical |
| Accuracy | ±3% typical |
| Repeatability | ±5 mm (indoor) / ±10 mm (outdoor strong light) |
| Resolution | Up to 1 mm |
| Field of View (FoV) | Programmable, up to 27° |
| Operating Temp | -40°C to +80°C |
