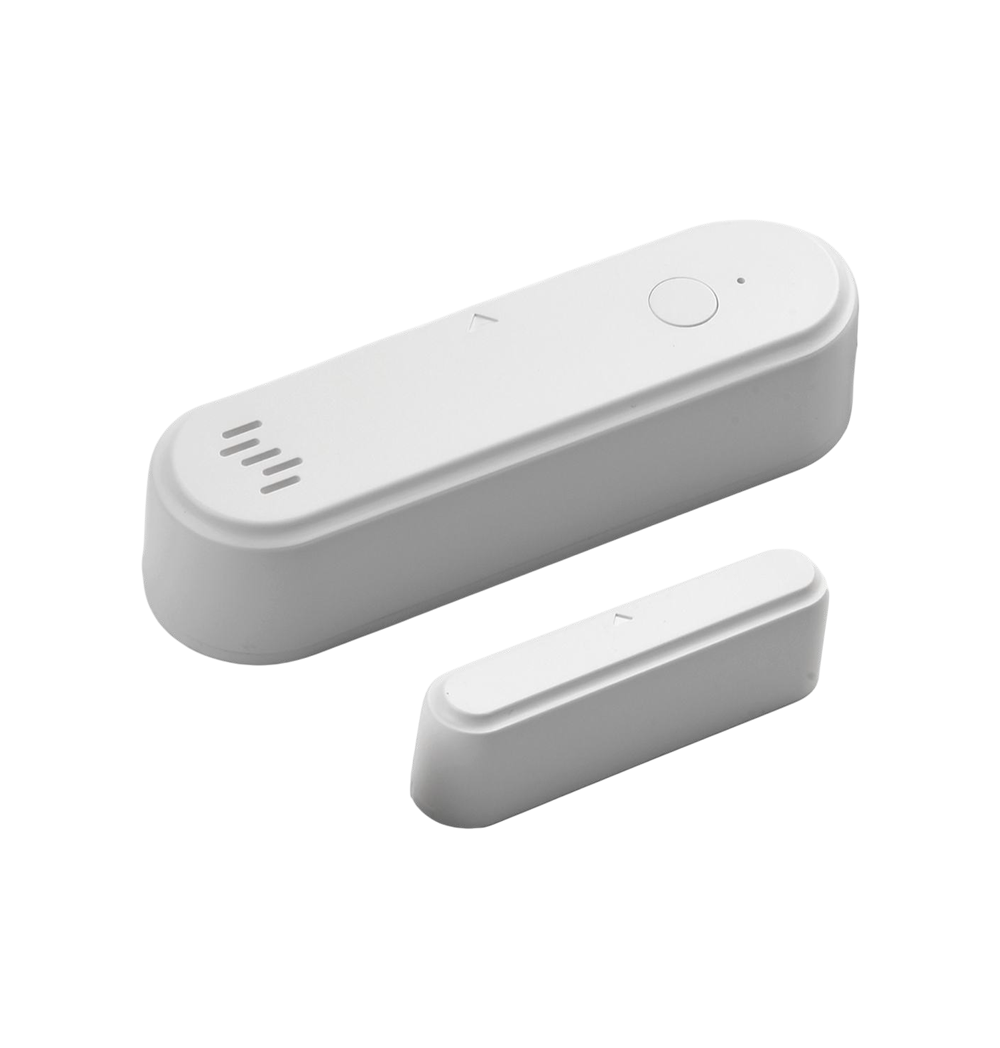

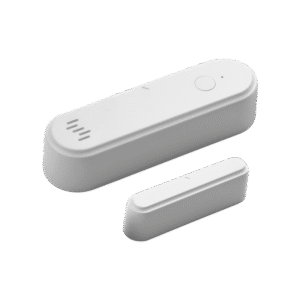

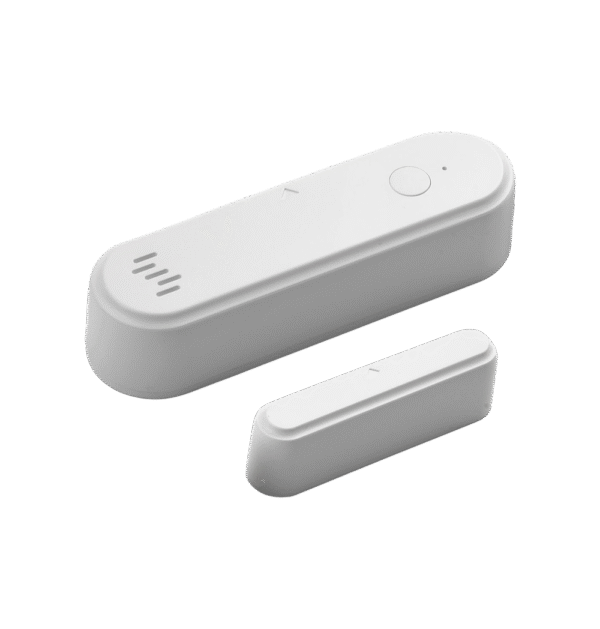

LoRaWAN door/window contact sensor with long battery life, real-time alerts, and rugged IP65 design for secure entry monitoring.
LoRaWAN v1.0.4 Class A device (configurable to Class C)
Magnetic contact sensor for open/close detection
Tracks open/close events with timestamps
Configurable periodic uplinks and alarms
Long battery life: 60,000+ uplinks with 2 × AAA batteries
Pre-programmed DevEUI/AppEUI/AppKey for secure onboarding
Supports major LoRaWAN networks (TTN, Helium, Loriot, Chirpstack, Orbiwise)
Rugged IP65-rated enclosure for indoor/outdoor use
| Parameter | Value |
|---|---|
| Product Part Number | MACDS02 / 03 / 04 |
| LoRaWAN Class | Class A (default), configurable to Class C |
| Frequency Options | IN865, EU868, US915, AU915 |
| LoRaWAN Range | 2 km Urban / 6 km LoS |
| Sensitivity | -138 dBm |
| Activation Type | OTAA |
| Battery Type | 2 × AAA Alkaline |
| Battery Life | Up to 3 years (1 uplink per 5 mins) |
| Dimensions | 45 × 23 × 19 mm / 35 × 23 × 19 mm |
| Protection Rating | IP65 |
