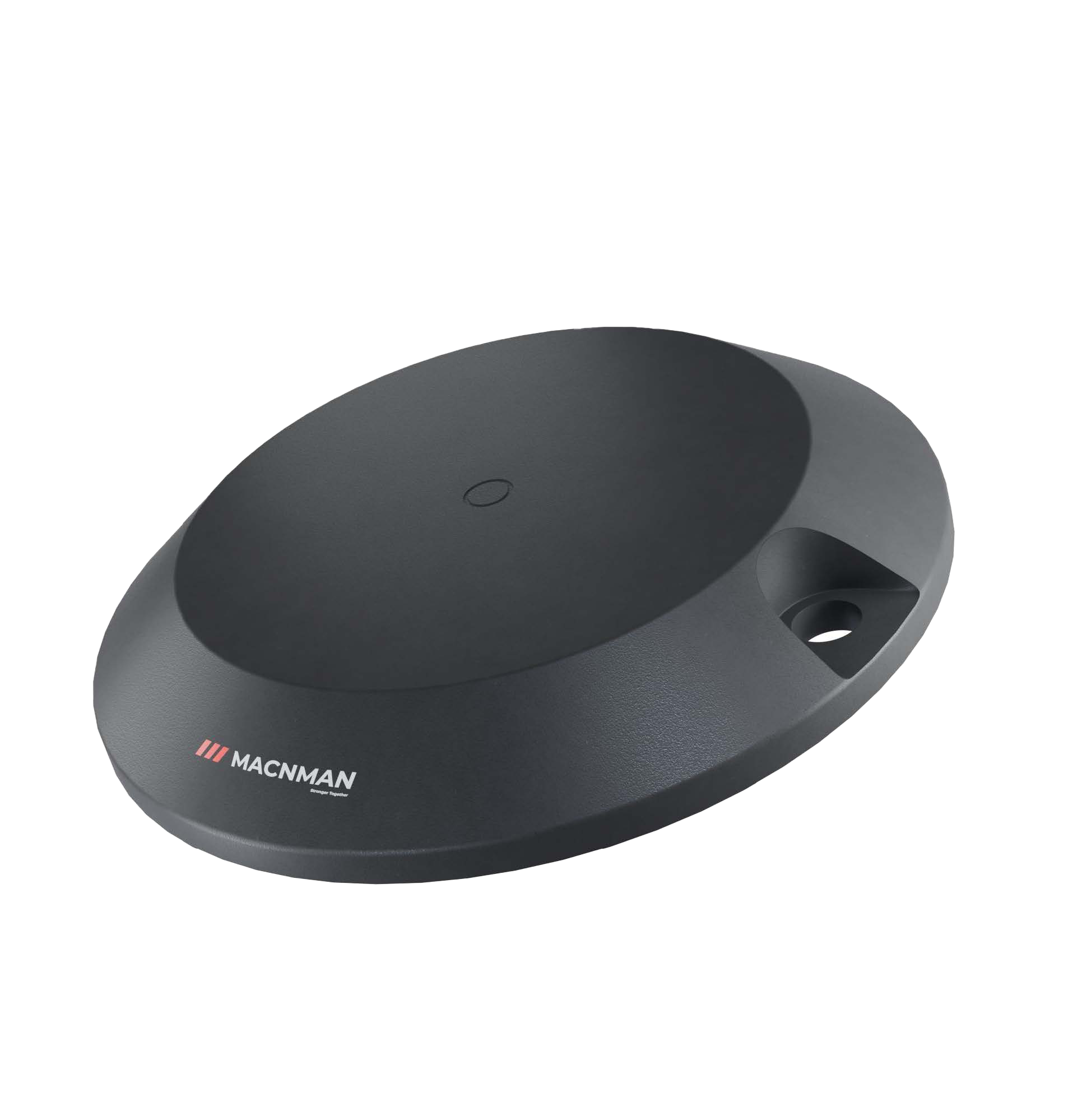

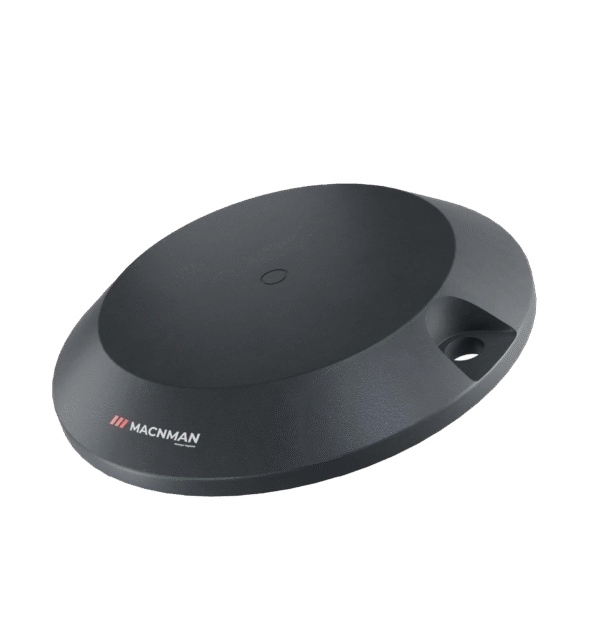

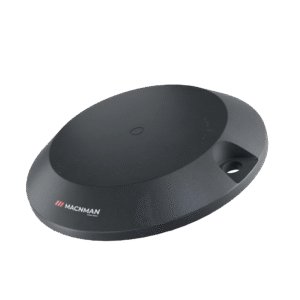

Parking Node is a compact, in-ground LoRaWAN®-enabled geomagnetic sensor designed to accurately detect vehicle presence in parking spaces. With dual-mode detection, long battery life, and reliable wireless connectivity, it enables real-time parking management and integration with smart city platforms.
RS485 (Modbus RTU) Interface
Compatible with energy meters, PLCs, Transmitters
Temperature & humidity measurement
Optional Sensing for Road Condition
Easy Surface Mounting
Quick, non-invasive installation
Smart Platform Integration
Easy onboarding with Parkomate Platform
High Reliability
Accuracy of dual-mode detection is over 99%
Massive 12Ah built-in lithium battery
Up to 10+ years depending on settings
Supports Macnman Beam Protocol
Direct control, & local device-to-device actions
Secure onboarding with pre-flashed DevEUI / AppEUI / AppKey
Optional Onboard Data Buffering
To prevent data loss in case of network downtime
Compatible with all LoRaWAN® network servers & gateways
| Parameter | Value |
|---|---|
| Antenna Technology | Internal high-efficiency antenna |
| Supported Bands | IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 |
| Tx Power | 16 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz |
| Sensitivity | -137 dBm @ 300 bps |
| Activation | OTAA / ABP |
| LoRaWAN® Class | Class A (default), Configurable to Class C |
| Power Supply | Inbuilt Battery – 12,000 mAh |
| Operating Temp | -40°C to +80°C |
| Ingress Protection | IP68 |
| Dimensions | Φ: 202mm, H: 30mm |
