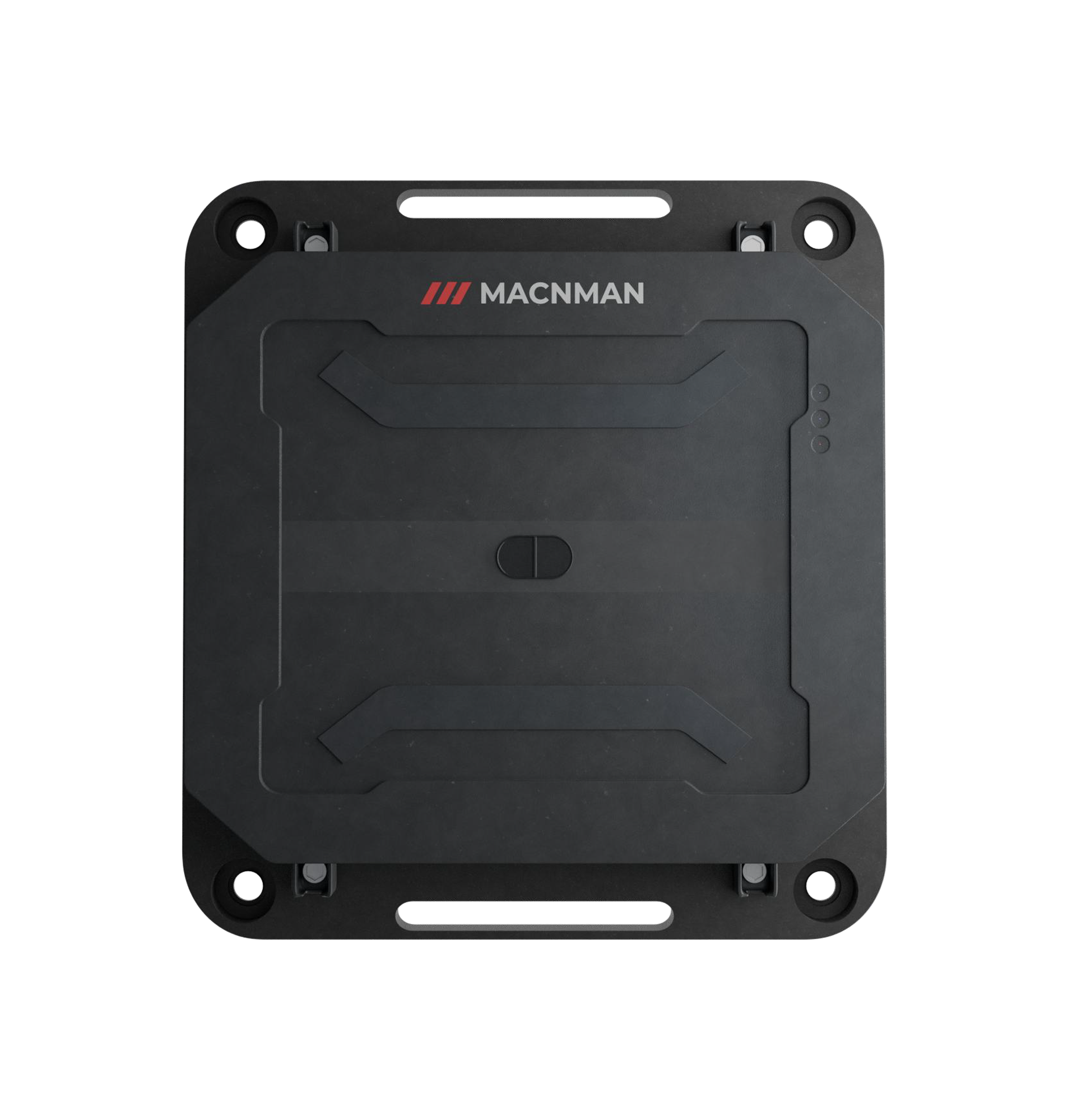

Industrial-grade 4G tilt and GPS tracker with integrated motion sensing, secure communication, and long battery life.
High-reliability tilt & motion detection
Integrated GPS with real-time location reporting
Optional condition monitoring (temperature, humidity, vibration)
Onboard data buffering (prevents data loss)
Compact, rugged, surface-mounted design
Long-lasting lithium battery (up to 1+ years)
Secure communication with encrypted transmission
Works across global LTE-M / NB-IoT networks with 2G fallback
| Parameter | Value |
|---|---|
| Supported Bands | Global LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66) |
| Antenna | Internal / External LTE high-gain |
| Tx Power | 23 dBm (LTE) / 33 dBm (GSM fallback) |
| Sensitivity | –108 dBm (LTE Cat-1 typical) |
| Positioning System | GNSS (GPS/GLONASS/Galileo/BeiDou) |
| Accuracy | ±2.5 m CEP (open sky) |
| Battery | Dual 3600 mAh Li-ion (inbuilt) |
| Operating Temp | -40°C to +80°C |
| Ingress Protection | IP68 |
| Dimensions | 96 × 96 × 23 mm |
As a leading wireless monitoring and automation provider, OmniWOT offers a comprehensive suite of solutions. Our powerful platform includes 100+ long-range wireless sensors, a Smart Gateway, and a versatile Open Cloud Platform designed to meet the unique needs of diverse industries.
