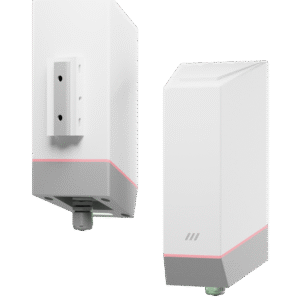

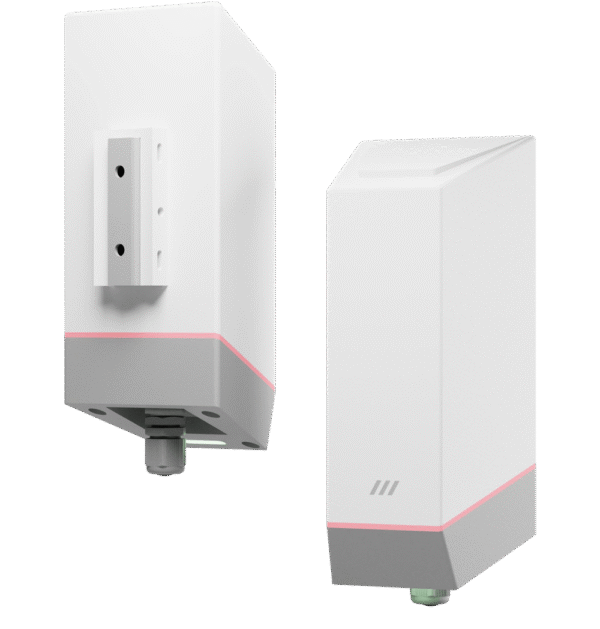

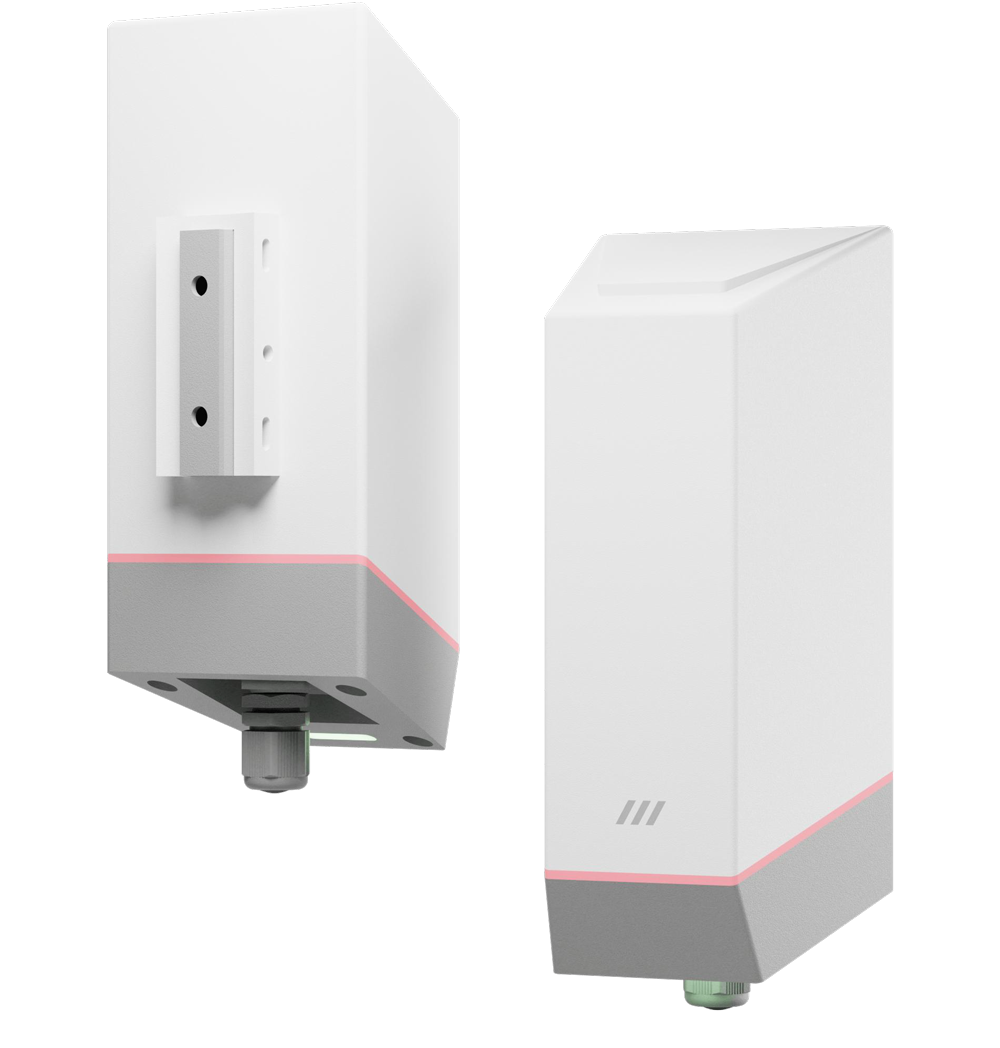

Discrete, recessed magnetic door/window sensor with real-time alerts and secure communication for smart security applications.
Recessed installation for seamless integration
Magnetic activation for instant alerts
Compact and lightweight design
No external power supply required
Customizable alerts and notifications
Long battery life with low-power operation
Secure and encrypted communication
Designed for flexible indoor installations
| Parameter | Value |
|---|---|
| Operating Temp | -40°C to +65°C |
| Actuation Distance | 15 – 25 mm (MC-38), 10–45 mm (MC-39) |
| Ingress Protection | IP65 / IP67 |
| Connection Type | Normally Close (N.C.) |
| Cable Length | 1.5 m (standard) |
| Dimensions | 70 × 46 × 21 mm |
| Weight | 33.5 g |
| Material | ABS+PC (anti-fire) |
| Humidity Range | 0% – 95% RH (non-condensing) |
| Color | White |
