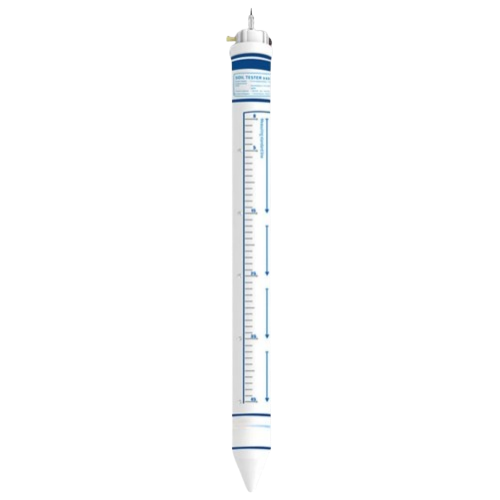

LXBS-3001 | Multi-Depth IoT Soil Monitoring Solution for Smart Agriculture

Multi-Depth IoT Soil Monitoring Solution for Smart Agriculture

Get Quote
Category
  • > Multi-Depth Monitoring: Continuous monitoring of soil temperature and moisture at different depths (3 depths or 5 depths options available).
  • > 7 Key Soil Parameters: Monitors Soil Moisture, Soil Temperature, Electrical Conductivity (EC), Soil pH, Nitrogen (N), Phosphorus (P), and Potassium (K).
  • > High Sensitivity & Accuracy: Adopts high-sensitive probes with fast response speed, low zero drift, and good repeatability.
  • > Industrial-Grade Protection: IP68 protection level, resistant to harsh environmental conditions.
  • > Flexible Communication: Supports RS485 Modbus, 4G, Ethernet, and LoRaWAN wireless data transmission options.

> Power Supply: 12-24V DC
> Communication Protocol: RS485 Modbus / LoRaWAN
> Temperature Range: -40°C ~ 80°C (Accuracy ±0.5°C)
> Moisture Accuracy: ±3% @ 0-53%RH, ±5% @ 53-100%RH
> Electrical Conductivity Range: 0 – 10000 μS/cm
> Protection Level: IP68

View Datasheet

View User Manual
